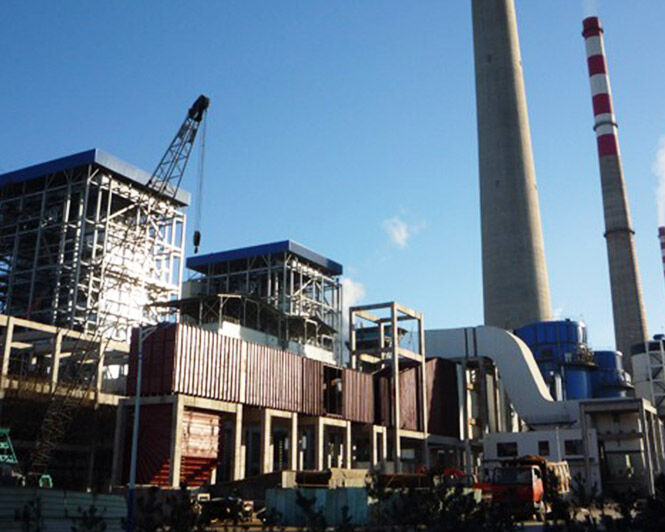

Pulverized coal boiler
Pulverized coal boiler use pulverized coal as fuel. The coal powder will be fed into fire chamber with air, and burning in suspended state. Except the very poor quality coal, most of other coal could be burned completely in this boiler, combustion efficiency could achieve to 88~93%. Most of large coal fired boiler for power plant adopts this kind combustion mode, it also suit for big capacity (≥35t/h) industrial used boiler.

Product introduction

Overview:

Pulverized coal boiler use pulverized coal as fuel. The coal powder will be fed into fire chamber with air, and burning in suspended state. Except the very poor quality coal, most of other coal could be burned completely in this boiler, combustion efficiency could achieve to 88~93%. Most of large coal fired boiler for power plant adopts this kind combustion mode, it also suit for big capacity (≥35t/h) industrial used boiler.

Benefit:

1.Friendly working environment: whole system is closed running, automatic coaling, centralized ash discharge, without dust spilling

2.Easy to start and shut down: boiler could be started and shut down quickly. It needs only 30 seconds to achieve normal running condition, and then cut off the incendiary source. If need to shut down the boiler, just stop feeding the pulverized coal.

3.High monitoring level: monitor and adjust working data automatically to make whole system in best running condition. Mean while, reduce the running risk by human factor.

4.High efficiency and saving energy: pulverized coal could be combusted completely. Boiler has great heating exchange effect, small air excess coefficient and higher heating efficiency. For big power equipments’ frequency converter, the energy saving effect is much clearer.

5.Clean emission: boiler could process desulphurization in furnace. Burner use low temperature air grade design, burning temperature field is uniform to avoid parts temperature is high, which make the content of SO2 and NOx is lower in the process. Reduce dust concentration of the exhaust by bag filter. The collected ash will be discharged from a closed system, no secondary pollution.

6.Optimal land utilization: no need storage yard for coal and ash. Saving land and investment.

Construction:

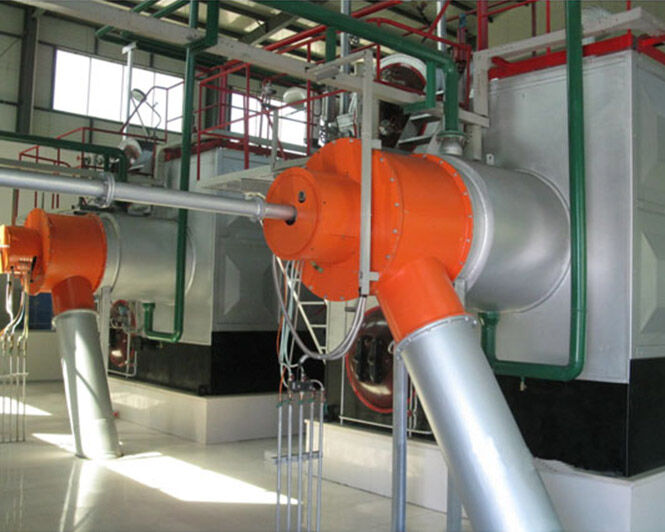

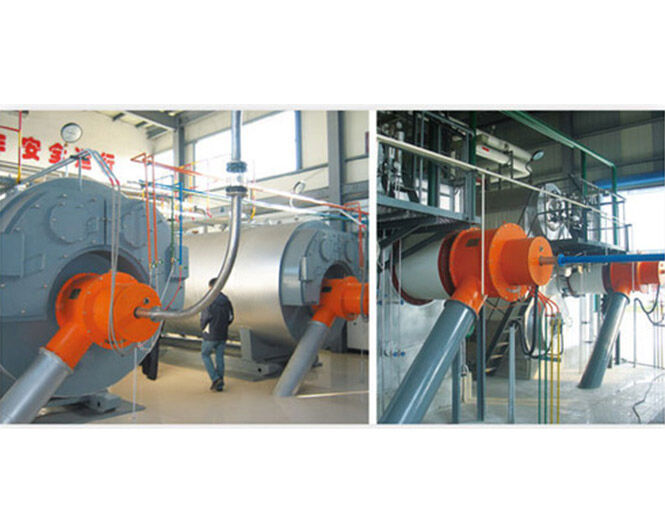

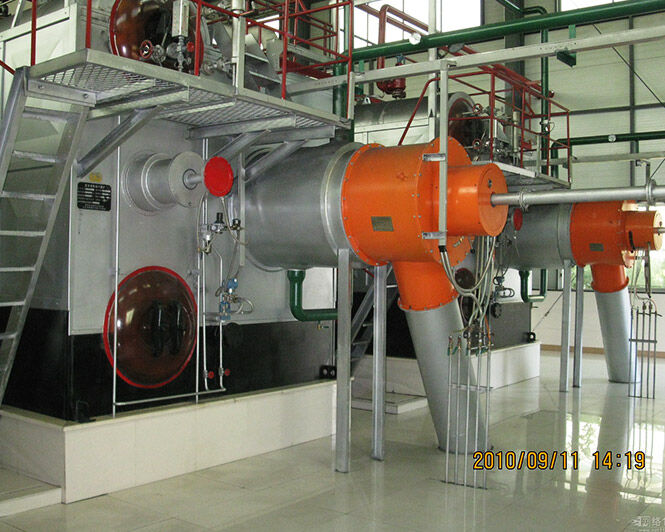

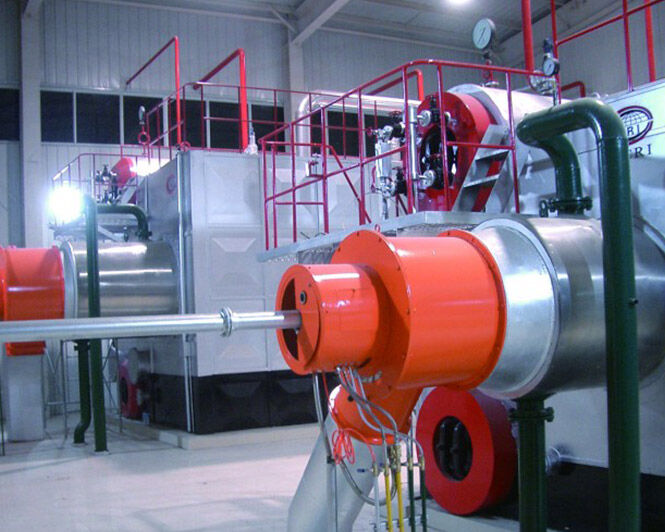

Pulverized coal boiler is made up by fire chamber, burner and ignite device, etc. Coal powder is fed to fire chamber by primary fan, air will be fed by secondary fan. After be preheated, dried, volatile de-volatilization, it will be ignited close to burner’s outlet and burning. Some of the bigger ash will fall in to the ash bucket, most small ash will be taken by flue gas. This kind boiler must assemble high efficiency dust collector.

Technical parameters

Steam boiler

Boiler model
WNS2-1.25-AIIIWNS4-2.5-AIIIWNS6-1.25-AIIIWNS10-1.25-AIIISZS2-1.25-AIIISZS4-2.5-AIIISZS6-1.25-AIIISZS8-1.25-AIIISZS10-1.6-AIIISHS20-1.25-AIII
Rated steam capacityt/h2461024681020
Rated working pressureMPa1.252.51.251.251.252.51.251.251.251.25
Rated steam temperature194223194194194223194194194194
Rated feed water temperature20201051052020105105105105
Combustion type/Chamber combustion
Heating efficiency%≥87
Fuel consumptionkg/h236475615100523647561581510152030
Shipping weight of the biggest partt112739451727394248In bulk
Shipping dimension of the biggest partmm5865x2894x34265860x3060x35258865x2894x342611400x3230x37005865x2894x342663700x3060x35258290x3080x35148790x3200x35769560x3580x358010100x4850x4825

Note:

The fuel consumption is calculated as Qdw=26.3MJ/Kg (6300kcal/kg)

This form is only for your reference, please ask the latest data if you need.


Hot water boiler

Boiler model
WNS1.4-0.7/95/70-AIIIWNS2.8-0.7/95/70-AIIIWNS4.2-0.7/95/70-AIIIWNS7.0-1.0/115/70-AIIISZS1.4-0.7/95/70-AIIISZS2.8-0.7/95/70-AIIISZS4.2-0.7/95/70-AIIISZS5.6-0.7/95/70-AIIISZS7.0-1.0/115/70-AIIISZS14-1.25/130/70-AIII
Rated thermal powerMW1.42.84.27.01.42.84.25.67.014
Rated working pressureMPa0.70.70.71.00.70.70.70.71.01.25
Rated water output temperature95959511595959595115130
Rated feed water temperature70707070707070707070
Combustion type/Chamber combustion
Heating efficiency%≥87
Fuel consumptionkg/h220440660108022044066088010852172
Shipping weight of the biggest partt102337431523374043In bulk
Shipping dimension of the biggest partmm5620x2100x24507430x2540x30808410x2880x332211416x3230x36825620x2890x34706330x3060x35258290x3080x35108790x3200x35729544x3580x357210080x4850x4825

Note:

The fuel consumption is calculated as Qdw=26.3MJ/Kg (6300kcal/kg)

This form is only for your reference, please ask the latest data if you need.
