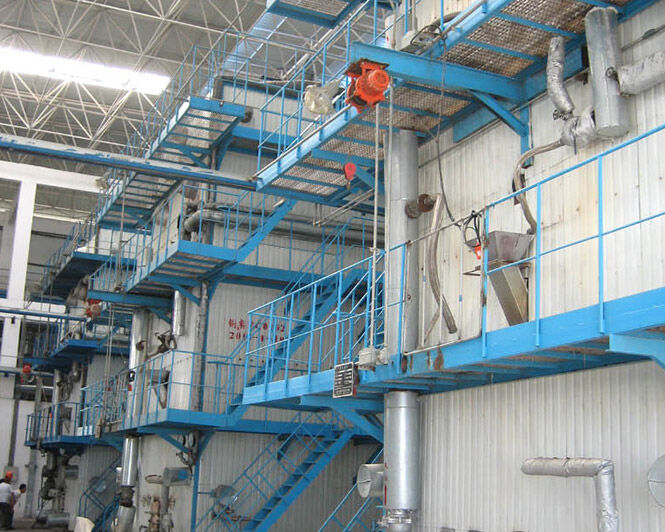

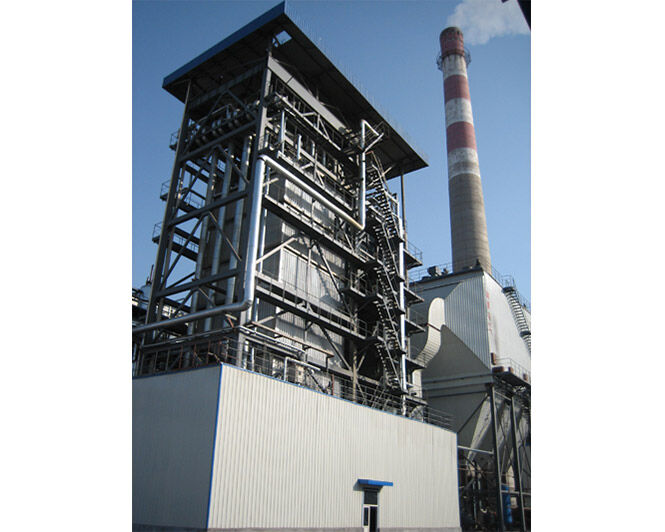

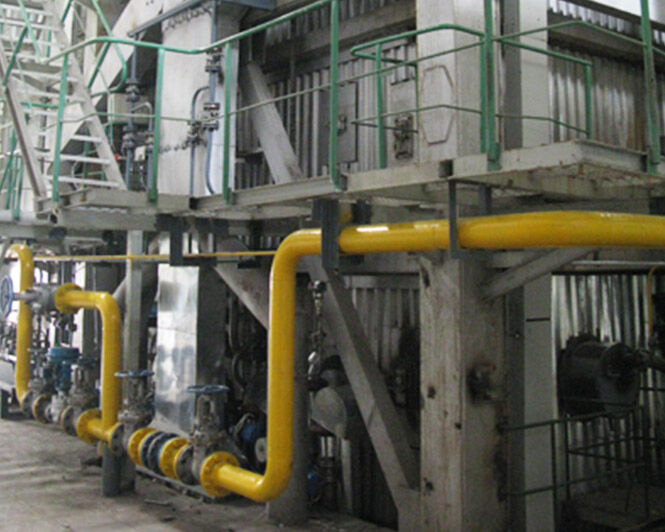

Coal Water Slurry Boiler
Coal water slurry boiler uses coal water slurry as fuel. Coal water slurry is a kind of liquid which is mixed by 70% coal powder, 30% water and a little chemical. It can be pumped, atomized and stored like oil, and also be burned in boiler and furnace. It changes the traditional combustion mode of coal, showing a huge energy-saving advantage of environmental protection. The coal slurry becomes to the most basic and cleaning energy to replace oil and gas.

Product introduction

Overview:

Coal water slurry boiler uses coal water slurry as fuel. Coal water slurry is a kind of liquid which is mixed by 70% coal powder, 30% water and a little chemical. It can be pumped, atomized and stored like oil, and also be burned in boiler and furnace. It changes the traditional combustion mode of coal, showing a huge energy-saving advantage of environmental protection. The coal slurry becomes to the most basic and cleaning energy to replace oil and gas.

Benefit:

1.Use clean fuel which made by high quality coal, solve pollution problem from the energy source.

2.Running cost is much lower than oil fired boiler.

3.Environmental protection and energy saving. Sulfur content and dust content of exhaust gas are much better than standard.

4.Complete burning rate could achieve to 98% or higher. Heating efficiency is higher than 85%.

5.Coal water mixture could be transported and stored in liquid condition, automatic ignite, easy to do automatic control and operate. It’s a perfect substitute product to instead of oil fire boiler.

Construction:

The fuel enters the furnace through coal feeder, mixes and combustions with air sent by isobaric wind box. The exhaust gas goes into the cyclone separator that is formed by three membrane water cooling wall. Cooling of the membrane water wall not only guarantee stable operation of separator, but also allow re-combustion of the fuel, thus improving combustion efficiency.

Technical parameters

Steam boiler

Boiler model


SZS1-1.25-J

SZS2-1.25-J

SZS4-1.25-J

SZS6-1.25-J

SZS10-1.25-J

SHS15-1.25-J

SHS20-1.25-J

Rated steam capacity

t/h

1

2

4

6

10

15

20

Rated working pressure

MPa

1.25

2.5

1.25

1.25

1.25

1.25

1.25

Rated steam temperature

194

223

194

194

194

194

194

Rated feed water temperature

20

20

20

105

105

105

105

Combustion type

/

Chamber combustion

Fuel

/

Coal water mixture

Heating efficiency

%

≥85

Fuel consumption

kg/h

165

330

660

885

1470

2150

2840

Shipping weight of the biggest part

t

22

23

31.5

35.5

45

In bulk

In bulk

Shipping dimension of the biggest part

mm

4020x2500x2900

5560x2800x3540

6300x3100x3540

7100x3400x3540

8700x3800x3600

14850x7800x10450

16000x8500x11000

Note:

The fuel consumption is calculated as Qdw=18.81MJ/Kg (4500kcal/kg)

The coal water mixture quality should according to the requirement of GB/T18855-2002 <Technical specification of coal water mixture>

Boiler model


SHFS4-1.25-J

SHFS6-1.25-J

SHFS10-1.25-J

SHFS20-1.6-J

SHFS35-3.82/450-SM

SHFS75-3.82/450-SM

Rated steam capacity

t/h

4

6

10

20

35

75

Rated working pressure

MPa

1.25

2.5

1.25

1.6

3.82

3.82

Rated steam temperature

194

223

194

204

450

450

Rated feed water temperature

20

105

105

105

105

105

Combustion type

/

`Fluidization suspension combustion

Fuel

/

Coal water mixture

Heating efficiency

%

≥86

Fuel consumption

kg/h

666

870

1420

2845

6059

15043

Maximum height of the boiler body

mm

6000

6300

6700

8000

11100

14000

Shipping dimension of the biggest part

mm

8300x6800x6000

8500x6800x6300

10670x7550x6700

12650x7950x8000

15280x7950x11100

18100x1050x14000

Note:

The fuel consumption is calculated as Qdw=18.81MJ/Kg (4500kcal/kg)

The coal water mixture quality should according to the requirement of GB/T18855-2002 <Technical specification of coal water mixture>


Hot water boiler

Boiler model


SZS1.4-0.7/95/70-J

SZS2.1-0.7/95/70-J

SZS2.8-1.0/115/70-J

SZS4.2-1.0/115/70-J

SZS5.6-1.0/115/70-J

SZS7.0-1.0/115/70-J

Rated thermal power

MW

1.4

2.1

2.8

4.2

5.6

7.0

Rated working pressure

MPa

0.7

0.7

1.0

1.0

1.0

1.0

Rated water output temperature

95

95

115

115

115

115

Rated feed water temperature

70

70

70

70

70

70

Combustion type

/

Chamber combustion

Fuel

/

Coal water mixture

Heating efficiency

%

≥85

Fuel consumption

kg/h

320

480

640

960

1280

1600

Shipping weight of the biggest part

t

21.4

21.4

22

34.2

36.8

45

Shipping dimension of the biggest part

mm

5560x2800x3540

5600x2800x3540

6300x3100x3540

7100x3400x3540

8300x3500x3600

8700x3800x3600

Note:

The fuel consumption is calculated as Qdw=18.81MJ/Kg (4500kcal/kg)

The coal water mixture quality should according to the requirement of GB/T18855-2002 <Technical specification of coal water mixture>
