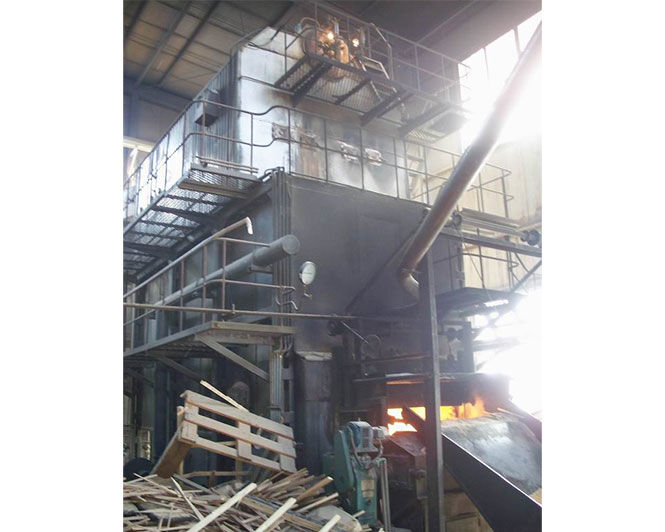

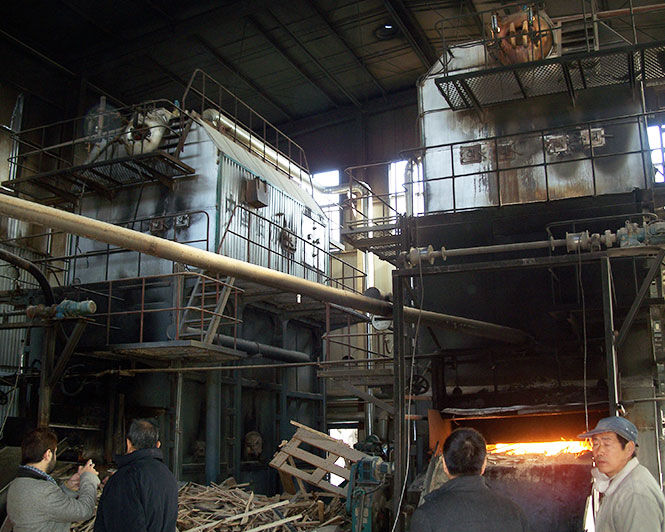

Biomass hot water boiler
Biomass boiler is a customized design boiler for different biomass fuel, such as wood chips, rice husk, biogases, coconut shell, straw and biomass pellet, etc.

Product introduction

Overview:

Biomass boiler is a customized design boiler for different biomass fuel, such as wood chips, rice husk, biogases, coconut shell, straw and biomass pellet, etc.




Benefit:

Clean and renewable energy, good for environment

Fuel cost is much lower than traditional fuel, reduce running cost

Help user to process biomass waste, such as furniture factory, agriculture product processing factory, etc.

Solve energy shortage problem in remote area


Construction:

Double drum design and water tube structure, assembly type. To suit biomass fuel, we increase the fire chamber and heating area much bigger than coal fired boiler. The furnace has a special design—cyclone re-burning chamber, which will make biomass fuel burning completely and reduce the dust content of emission.

It will increase the boiler efficiency and reduce the concentration of emission.

Use mechanical and air blowing type feeding system, which make the feeding steady and reliable.

Depends on different biomass fuel type and size, we will chose different grate, such as chain grate, reciprocating grate, vibrating grate, etc.


Technical parameters

Model SZG0.35-0.7/95/70SZL0.7-0.7/95/70SZL1.4-0.7/95/70SZL2.8-0.7/95/70SZL4.2-1.0/115/70SZL5.6-0.7/95/70SZL7.0-1.0/115/ 70SZL10.5-1.0/115/ 70
Rated thermal powerMW0.350.71.42.84.25.6710.5
Rated working pressureMP0.70.70.70.710.711
Water output temperature9595959511595115115
Water return temperature7070707070707070
`Fuel type/wood chips, rice husk, bagasse, coconutshell, straw, biomass pellet
Exhaust temperature160195190190160170170170
Emission concentrationmg/Nm3<80<80<80<80<80<80<80<80
Working efficiency%7875.1978.880.478.18*81.582.1782.3
Delivery type/Packaged Assembly/in bulk
